1 to 4 sections for open and closed centre. Fitted with main pressure relief and load check. Available in parallel or tandem circuit. Optional carry-over port. Ø14mm interchangeable spools. Available with microswitch and cable spool control.
1 to 7 sections for open and closed centre circuits. Fitted with main pressure relief and load check. Available in parallel, series or tandem circuit. Optional power beyond port. Ø16mm interchangeable spools. Available with solenoid and cable spool control.
1 to 6 sections for open or closed centre applications. Available in parallel or series circuit. Optional power beyond port. Ø20mm interchangeable spools. Available with electro-hydraulic, pneumatic, hydraulic pilot and cable spool control.
1 to 3 spools for open or closed centre applications. Fitted with direct or pilot operated main pressure relief. Available in parallel circuit only. Optional power beyond port. Ø25mm interchangeable spools. Available with manual, electro-hydraulic, pneumatic, hydraulic pilot and cable spool control.
The Southcott-Walvoil cane trailer brake valve is designed to meet the requirements of the transport departments for cane trailers. The valve is inserted into the tractor hydraulic circuit as per the circuit options below. NB: The brake is connected directly to tank when the valve is in neutral thus eliminating the signal entirely leaving no back pressure on the brake.

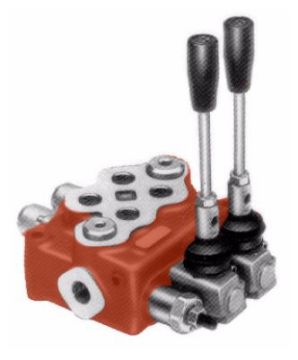

These directional control valves are the same as the SD5 series, except they are fitted with a pressure compensated flow regulator on the inlet port to provide fine tuning of the actuator speeds. It can also be fitted with a solenoid unloader valve which enables remote stop/start. For open and closed centre circuits. Fitted with main pressure relief. Ø16mm interchangeable spools. Available with solenoid and cable spool control.
These directional control valves are the same as the SD5 series except they have the provision for the fitment of port reliefs & anti-cavitation checks. They have a relief valve and load hold check valve on the spool pressure line and the provision for a high pressure carry over port. An unloader solenoid is also available as an option. Also available in 5 or 6 sections on request.
Fitted with direct or pilot operated main pressure relief. Independent load check per spool. Available in parallel circuit only. Optional carry-over port. Ø18mm interchangeable spools. Available with manual, electro-hydraulic, pneumatic, hydraulic pilot and cable spool control. Applications: Agricultural machinery, harvesters, front-end loaders, earth movers, dumpers, shovels and mobile cranes.
3 sections for open centre. Fitted with main pressure relief. Available with series circuit only. Optional carry-over port. A wide variety of service port valves. Available with manual, electro-hydraulic and remote cable control. Ø18mm interchangeable spools. Application: Skid-steer loaders. Available on request only.
Twin spool open or closed centre circuit options. Fitted with main pressure relief and load check on each working section. Available with: Port Relief and anti-cavitation circuit valves. Power beyond port. Ø16mm interchangeable spools. Manual or cable spool control.
1 to 12 sections for open and closed centre. Fitted with main pressure relief and load check. Available with: Parallel, tandem or series circuit. Optional carry-over port. Port Relief and anti-cavitation circuit valves. Ø20mm non-interchangeable spools. Manual, electro-hydraulic, hydraulic pilot or remote cable spool control.
1 to 12 sections for open or closed centre circuit options. Fitted with main pressure relief and load checks on each section. Available with: parallel, tandem or series circuit. Power beyond port. Port Relief and anti-cavitation circuit valves. Ø16mm interchangeable spools. Manual, electro-hydraulic, hydraulic pilot, pneumatic pilot or cable spool control.
1 to 12 sections for open or closed centre circuit options. Fitted with main pressure relief and load checks on each section. Available with: parallel, tandem or series circuit. Power beyond port. Port Relief and anti-cavitation circuit valves. Ø18mm interchangeable spools. Manual, electric, electro-hydraulic, hydraulic pilot, pneumatic pilot or cable spool control.
1 to 12 sections for open and closed centre. Fitted with main pressure relief and load checks on each section. Available with: Parallel, tandem or series circuit. Optional carry-over port. Port Relief and anti-cavitation circuit valves. Ø20mm interchangeable spools. Manual, electro-hydraulic, hydraulic pilot, pneumatic pilot or cable spool control.
1 to 12 sections for open and closed centre. Fitted with main pressure relief and load check on each section. Available with: Parallel, tandem or series circuit. Optional carry-over port. Port Relief and anti-cavitation circuit valves. Ø20mm interchangeable spools. Manual, electro-hydraulic, hydraulic pilot and remote cable spool control.
Sectional directional control valves with direct acting on/off solenoids. 1 to 10 sections. Fitted with main pressure relief and unloader on inlet section. Available with parallel or series circuit. Sections are arranged to easily add service valves bolted to the section. Emergency hand lever option available. NB: This line by indent only
Sectional directional control valves with direct acting on/off solenoids. 1 to 10 sections. Fitted with main pressure relief and unloader on inlet section. Available with parallel or series circuit. Sections are arranged to easily add service valves bolted to the section. Emergency hand lever option available. NB: This line by indent only
1 to 12 sections for open and closed centre circuit applications. 400 Litre flow capacity. Fitted with main pressure relief and load check. Available with: Parallel, series circuit. Optional carry-over port. Port relief and anti-cavitation circuit valves. Ø30mm interchangeable spools. 4th position float. Manual and proportional hydraulic pilot spool control.
Spool Diverter Valve. Cast iron body with a nickel plated carbon steel spool. Circuit can be 2-3-6 way. Spool operation options - manual, pneumatic, hydraulic pilot, electro-hydraulic and cam controls are available. NB: Mining versions available with non-alloy handles and end caps.
Spool Diverter Valve. Cast iron body with a nickel plated carbon steel spool. Circuit can be 2-3-6 way. Spool operation options - manual, pneumatic, hydraulic pilot, electro-hydraulic and cam controls are available. NB: Mining versions available with non-alloy handles and end caps.
Spool Diverter Valve. Cast iron body with a nickel plated carbon steel spool. Circuit can be 2-3-6 way. Spool operation options - manual, pneumatic, hydraulic pilot, electro-hydraulic and cam controls are available. NB: Mining versions available with non-alloy handles and end caps.
Spool Diverter Valve. Cast iron body with a nickel plated carbon steel spool. Circuit can be 2-3-6 way. Spool operation options - manual, pneumatic, hydraulic pilot, electro-hydraulic and cam controls are available. NB: Mining versions available with non-alloy handles and end caps.
Simple, compact and heavy duty designed with cast iron bodies and steel spools. Available in 3-, 4-, 6- and 8-way. Diverter valves are suitable to intercept and divert the flow on hydraulic systems, wherever a movement sequence, a safety device or a control selection of different actuators is needed.
Simple, compact and heavy duty designed with cast iron bodies and steel spools. Available in 3-, 4-, 6- and 8-way. Diverter valves are suitable to intercept and divert the flow on hydraulic systems, wherever a movement sequence, a safety device or a control selection of different actuators is needed.
Simple, compact and heavy duty designed with cast iron bodies and steel spools. Available in 3-, 4-, 6- and 8-way. Diverter valves are suitable to intercept and divert the flow on hydraulic systems, wherever a movement sequence, a safety device or a control selection of different actuators is needed.
Simple, compact and heavy duty designed with cast iron bodies and steel spools. Available in 3-, 4-, 6- and 8-way. Diverter valves are suitable to intercept and divert the flow on hydraulic systems, wherever a movement sequence, a safety device or a control selection of different actuators is needed.
Simple, compact and heavy duty designed with cast iron bodies and steel spools. Available in 3-, 4-, 6- and 8-way. Diverter valves are suitable to intercept and divert the flow on hydraulic systems, wherever a movement sequence, a safety device or a control selection of different actuators is needed.
Diverter Valve. Solenoid operated. 2 position diverter valves with solenoid control. Cast iron body and the spool of hardened steel. The solenoid is fitted with an emergency manual push button which can be used if there is a loss of power supply.
Diverter Valve. Solenoid operated. 2 position diverter valves with solenoid control. Cast iron body and the spool of hardened steel. The solenoid is fitted with an emergency manual push button which can be used if there is a loss of power supply.
Diverter Valve. Solenoid operated. 2 position diverter valves with solenoid control. Cast iron body and the spool of hardened steel. The solenoid is fitted with an emergency manual push button which can be used if there is a loss of power supply.
Diverter Valve. Solenoid operated. 2 position diverter valves with solenoid control. Cast iron body and the spool of hardened steel. The solenoid is fitted with an emergency manual push button which can be used if there is a loss of power supply.
For load sense systems. Fitted with main pressure relief and load check on each working section. Available with: Port relief and anticavitation valves. Power beyond port. Ø16mm interchangeable spools. Manual or cable spool control.
For load sense systems. Twin section for hydraulic systems with load sense variable displacement pump. Available with: Parallel circuit only. Port Relief and anti-cavitation circuit valves. Ø18mm interchangeable spools. Manual, electro-hydraulic or cable spool control.
For open and closed centre systems. Fitted with main pressure relief and load check on each working section. Available with: Port relief and anticavitation valves. Power beyond port. Ø16mm interchangeable spools. Manual or cable spool control.
For open and closed centre systems. Twin section for hydraulic systems with load sense variable displacement pump. Available with: Parallel circuit only. Port Relief and anti-cavitation circuit valves. Ø18mm interchangeable spools. Manual, electro-hydraulic or cable spool control.
1 to 10 sections for systems with fixed displacement pumps (open centre). Supporting variable displacement pumps with load sense compensation (closed centre). Fitted with main pressure relief and load check. Pressure gauge connectors on each section. A wide variety of port service valves. Ø20mm interchangeable spools. Available with manual, electro-hydraulic and remote cable control.
1 to 10 sections for systems with fixed displacement. Pumps (open centre) and variable displacement pumps with load sense and pressure compensation (closed centre). Fitted with main pressure relief and load check. Pressure gauge connectors on each section. A wide variety of port service valves. Ø16mm interchangeable spools. Available with manual, electro-hydraulic and remote cable control.
1 to 10 sections for systems with fixed displacement pumps (open centre) and variable displacement pumps with load sense and pressure compensation (closed centre). Load independent flow control. Fitted with main pressure relief and load check. Pressure gauge connectors on each section. A wide variety of port service valves. Ø18mm interchangeable spools. Available with manual, electro-hydraulic and remote cable control.
Proportional directional control valves with pre-compensated sections and load sensing. These valves are suitable for load sensing variable displacement pumps or fixed displacement pumps. Load independent flow control. Internal pilot oil supply built into inlet cover. Interchangeable spools with a range of flow options. A wide variety of service port valves. Available with manual, hydraulic and electro-hydraulic proportional spool control kits. Available with manual handle, oil pilot or electro-proportional controls. Available with compensated or non-compensated working sections.
Proportional directional control valves with higher flow capacity with pre-compensated sections and load sensing. These valves are suitable for load sensing variable displacement pumps or fixed displacement pumps. Available with manual handle, oil pilot or electro-proportional controls. A transition plate is available to adapt to DPC130. Load independent flow control. Internal pilot oil supply built into inlet cover. Interchangeable spools with a range of flow options. A wide variety of service port valves. Available with manual, hydraulic and electro-hydraulic proportional spool control kits. Available with manual handle, oil pilot or electro-proportional controls.
Cylindrical Ǿ 39mm handle with options for on /off controls via push button or rocker switch. Handle length 250mm with thread M10 or M12. Other combinations are available.
