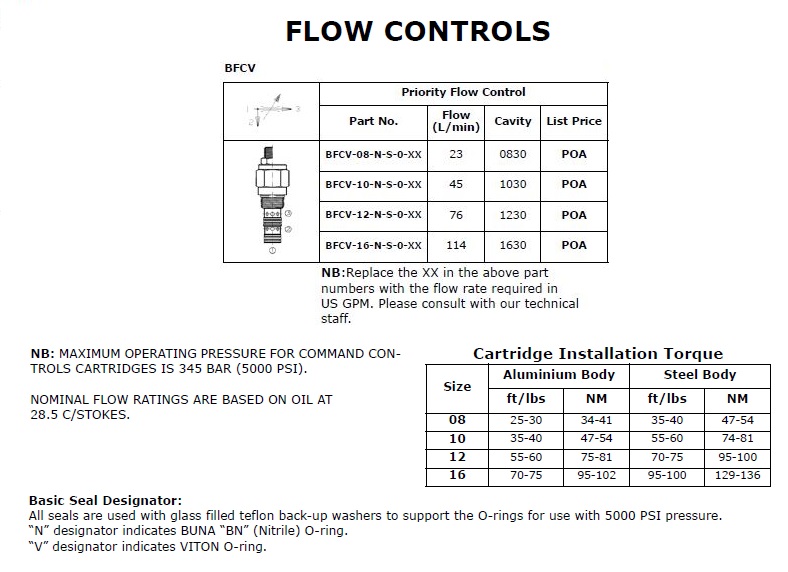

BFCV - Flow Control Valve Pressure Compensated Fixed Orifice Priority Type

Fixed Type - This unit is a screw in, catridge type, pressure compensated, fixed orifice, priority type hydraulic flow control valve. Flow range: 0.8 LPM to 15.1 LPM Adjustable Type - This unit is a screw in, catridge type, pressure compensated, fixed orifice, 50% flow adjustment, priority type hydraulic flow control valve. Flow range: 0.8 LPM to 22.7 LPM (Flow adjustment under pressure is difficult) Operations: Valve maintains constant flow from port 1 to 3 regardless of system pressure or load and excess flow is diverted to port 2. Flow from port 3 goes thru the control orifice to port 1 at non-compensated non-compensated flow. Specifications: Operating Pressure: 5,000 PSI (350 Bar) Valve Housings: 2,500 PSI (210 Bar) = Aluminum 5,000 PSI (350 Bar) = Steel
