Cylinders

The Streamline medium duty - SLM hydraulic cylinder is a field proven design suitable for a vast majority of medium duty applications. The internally screwed front cap in conjunction with ports integrated within each end cap form the basis of the STREAMLINE design. These features, coupled with the use of high quality seals, make it a popular option for use within both the mobile and industrial markets. Maximum working pressure = 207 BAR (3000 psi) NB: For high pressure on long strokes, refer to our technical department for column strength of rods, etc. High pressure T-seals on pistons and non-standard rods and strokes are available upon request.

The Streamline heavy duty - SLH hydraulic cylinder is a robust design for medium to heavy-duty applications. The cylinder has a number of features which allows it to perform under demanding industrial type loading situation where a medium level of shock loading and pressure spiking may occur.

The Streamline phasing cylinder - SLP is based on SLH design and benefits from the same design features but is fitted with the patented PTE re-phasing valve. The cylinders come in a range of sizes developed to form synchronised sets. The unique valve design allows for re-phasing of cylinders at either end of their stroke.

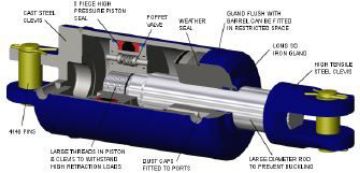

The streamline heavy-duty phasing cylinder - SHP is based on the SLP design and benefits from the same design features but is fitted with larger rods for heavy duty applications. The cylinders are available in 1/2" increments to form synchronised sets. The unique valve design allows for re-phasing of cylinders at either end of their stroke.
