The L10 Series is Helac's smallest and most compact helical hydraulic actuator. Ideal for applications where space is of premium importance, the ultra-compact L10 series features extremely high thrust capacity in a sleek cylindrical design with flanged mounting and flanged output.
Helac's helical hydraulic sliding spline technology is not self-locking and provides high stock resistance and high holding torque for demanding applications.
Functioning as a rotating device, mounting bracket and load bearing structure, the L10 Series eliminates the need for external bearing systems, brakes or locking devices.
Five standard sizes with torque outputs up to 25,000 in/lbs at 3000 psi (2825 Nm at 210 bar) are variable.
NB: Custom rotation limits available on request
The L20 Series is a cost effective solution that can easily be designed into a wide range of applications. It features versatile mounting options and flange output. Helac's Helical sliding spline technology is not self-locking and provides high shock resistance and high holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure, the L20 Series eliminates the need for external bearing systems, brakes or locking devices. Five standard sizes with torque outputs up to 39,000 in/lbs at 3000 psi (4400 Nm at 210 bar) are available.
NB: Custom rotation limits available on request
The L30 Series is our heavy duty helical hydraulic actuator that is suitable for harsh environments. Designed for applications that require ultra high bearing capacity, the L30 Series features foot or flange mount with flange output. Helac's helical sliding spline technology is not self-locking and provides high shock resistance and high holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure, the L30 Series eliminates the need for external bearing systems, brakes or locking devices. Nine standard sizes with torque outputs up to 380,000 in/lbs at 3000 psi (43,000 Nm at 210 bar) are available.
NB: Custom rotation limits available on request
The L30 Series is our heavy duty helical hydraulic actuator and is suitable for harsh environments. Designed for applications that require ultra high bearing capacity, the L30 Series features foot or flange mount with flange output. Helac's helical sliding spline technology is not self-locking and provides high shock resistance and high holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure, the L30 Series eliminates the need for external bearing systems, brakes or locking devices. Nine standard sizes with torque output up to 380,000 in/lbs at 3000 psi (43,000 Nm at 210 bar) are available.
NB: Custom rotation limits available on request

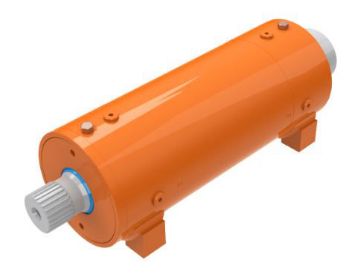

The T20 Series is ideal for applications where torque generation and higher cycle rates are the primary requirements. It features splined output shafts and 200-220 degrees of rotation. Helac's helical sliding spline technology is not self-locking and provides high shock resistance and high holding torque for demanding applications. Functioning as a rotation device, mounting bracket and load bearing structure, the T20 series eliminates the need for external bearing systems, brakes or locking devices. Three standard sizes with torque outputs up to 60.000 in/lbs at 3000 psi (6,780 Nm at 210 bar) are available.
NB: Custom rotation limits available on request

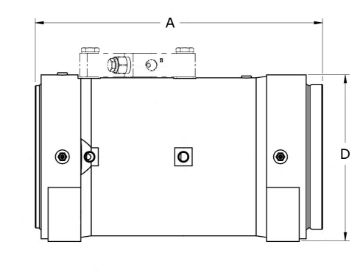

Aerial work platforms, the industrial and marine sectors are typical applications for this series. These actuators are suitable to support a bending moment. It is possible to choose between different products with a torque range starting from 200Nm to 11000Nm, with the possibility of angle rotation from 180° to 360°.
Note: All torque data refers to 210 bar working pressure

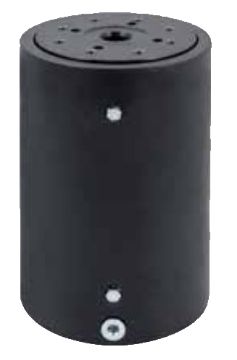

Aerial platforms are the main application for this series. These actuators are suitable to support a bending moment. It is possible to choose between different products with a torque range starting from 500Nm to 4500Nm with the possibility of angle rotation from180° to 270°.
Note: All torque data refers to 210 bar working pressure

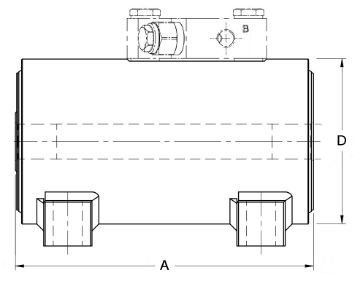

Aerial platforms are the main application for this series. These actuators are suitable to support a bending moment. It is possible to choose between different products with a torque range starting from 2020Nm to 15000Nm with the possibility of angle rotation from 180° to 360°.
All torque data refers to 210 bar working pressure
Overcentre valves are an integral part of a rotary actuator. The double overcentre valve is made by two cartridges fitted in a steel body then fixed on the actuator or screwed directly onto it. The valve ensures a smooth movement of the rotation and locks it in a fixed position when required.
