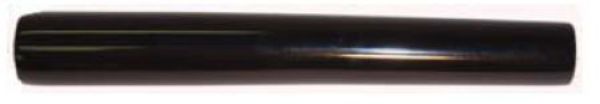

HBR - Bend Restrictor

Recommended For: High pressure hydraulic applications. Provides tighter than standard minimum bend radius and greater flexibility for easier plumbing. Meets flame resistance acceptance designation "MSHA 2G" Tube: Black, oil-resistant, synthetic rubber (Nitrile- Type C). Reinforcement: Two braids of high tensile steel wire. Cover: Black, oil, abrasion and weather resistant, synthetic rubber (Modified Nitrile- Type C ). Available with unique abrasion resistant MegaTuff® cover. XtraTuff® hose lasts up to 25 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. Temperature Range: -40°F to +212°F (-40°C to +100°C) Couplings: Super-Crimp, Global-Crimp and Mega-Crimp series

Recommended For: High pressure hydraulic oil lines. MR1 and 100R2 hose. Meets flame resistance acceptance designation "MSHA 2G" Tube: Black, oil, abrasion and weather resistant, synthetic rubber. (Modified Nitrile-Type C ). Reinforcement: Braided high tensile steel wire. -4, -6 and -8 sizes are one braid; -10, -12 and -16 sizes are two-braid. Cover: Black, oil, abrasion and weather resistant, synthetic rubber. (Modified Nitrile-Type C ). XtraTuff® hose lasts up to 25 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests. Temperature Range: -40°F to +212°F (-40°C to +100°C). Couplings: Super-Crimp, Ezi-Crimp and Gates Mega-Crimp series.

Recommended For: Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R1 Type AT and SAE 100R1 Type S and performance requirements of EN 853 2SN. Meets flame resistance acceptance designation MSHA 2G Tube: Black oil resistant, synthetic rubber (Nitrile-Type C). Reinforcement: One braid of high-tensile steel wire. Cover: Black, oil and abrasion-resistant, synthetic rubber (Modified Nitrile - Type C₂). Temperature Range: -40°F to +212°F (-40°C to +100°C). Couplings: Super-Crimp, Ezi-Crimp and Gates Mega Crimp series.

Recommended For: High pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2AT and SAE 100R2 Type S and performance requirements of EN 853 2SN. Meets flame resistance acceptance designation MSHA 2G Tube: Black oil resistant, synthetic rubber (Nitrile-Type C). Reinforcement: Two braids, of high - tensile steel wire. Cover: Black, oil and abrasion resistant thin synthetic rubber (Modified Nitrile - Type C ). Temperature Range: -40°F to +212°F (-40°C to +100°C). Couplings: Super-Crimp, Ezi-Crimp and Gates Mega Crimp series couplings.

Extremely High Pressure 4 Spiral Wire Hose (S.A.E 100R12) Recommended For: Extremely high pressure, high impulse applications. Exceeds all performance requirements for SAE 100R12, EN 856 4SP (-16). Meets flame resistance acceptance designation "MSHA 2G" Compatible with biodegradable hydraulic fluids like polyester, polyglycol and vegetable oil as well as standard petroleum based fluids. Available in 36 through 60 metre lengths. Tube: Black, oil resistant, synthetic rubber. (neoprene Type C). Reinforcement: Four alternating layers of spiralled, high-tensile steel. Cover: Black, oil resistant, synthetic rubber. (Neoprene Type A). With colour coded layline. MegaTuff® Hose lasts up to 300 times longer than the standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945. Temperature Range: -40°F to 250°F (-40 C to +121 C). Couplings: Super-Crimp and Global-Crimp series.
