RV - Relief Valves

Picture for manufacturer Bucher
Brand: Bucher
SKU: RVZZ
UOM: PCS

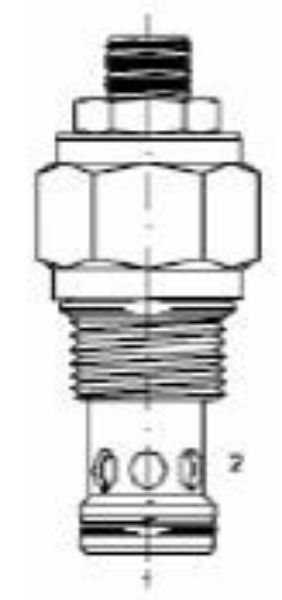

This unit is a screw in, catridge type, hydraulic pressure relief valve of various combination styles; RVPD - Is a direct acting, low flow, pilot control. RVDI - Is a direct acting, poppet type.. RVPS - Is a pilot operated, sliding spool. RVPP - Is a pilot operated, poppet type, with reverse flow check. RVBD - Is a pilot operated, poppet type, bi-directional (Cross-over) RVBS - Is a pilot operated, sliding spool, kick-down valve. RVDA - Is a differential area poppet type. PUVA - Is a unloading relief with differential area, pilot control for accumulator (80%) Specifications: Operating Pressure: 5,000 PSI (350 Bar) RVPD Flow: 7.6 LPM RVDI Flow: 76LPM RVPS Flow: 58 LPM to 230 LPM RVPP Flow: 100 LPM & 230 LPM RVBD Flow: 38 LPM to 150 LPM RVBS Flow: 100 LPM RVDA Flow: 38 LPM & 76 LPM PUVA Flow: 4 LPM Valve Housings: 2,500 PSI (210 Bar) = Aluminum 5,000 PSI (350 Bar) = Steel
$0.00 inc GST
*
