T20 - Rotary Actuator Shaft Output

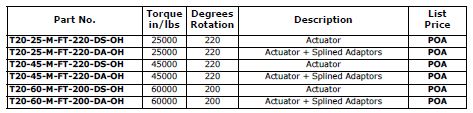

The T20 Series is ideal for applications where torque generation and higher cycle rates are the primary requirements. It features splined output shafts and 200-220 degrees of rotation. Helac's helical sliding spline technology is not self-locking and provides high shock resistance and high holding torque for demanding applications. Functioning as a rotation device, mounting bracket and load bearing structure, the T20 series eliminates the need for external bearing systems, brakes or locking devices. Three standard sizes with torque outputs up to 60.000 in/lbs at 3000 psi (6,780 Nm at 210 bar) are available. NB: Custom rotation limits available on request
